When it comes to metal roofing installations, every detail matters — and the fastener you choose can make or break the long-term performance of the entire system. Among the many fastening solutions available, pancake head screws have emerged as a go-to choice for contractors and specifiers who demand a low-profile, high-strength solution that sits flush and performs reliably across a wide range of applications.
What Are Pancake Head Screws?
Pancake head screws — named for their ultra-flat, wide-diameter head profile — are engineered low-profile fasteners designed to deliver optimal holding strength while minimizing protrusion above the mounting surface. Unlike traditional hex-head or washer-head screws, their slim profile reduces the risk of interference with overlapping panels, trim, and other roofing components.

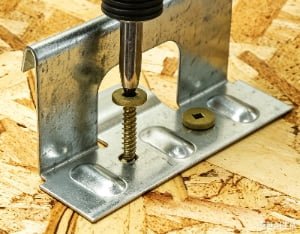

These fasteners are widely specified in metal roofing systems for attaching Standing Seam Roof (SSR) clips to both metal and wood substrates. They are easy to install, provide exceptional pullout strength, and are available with both piercing point and drill point options to suit different material thicknesses.
Piercing Capacity: Carbon Steel & 410 Stainless Steel — up to 20 gauge.
The ULP Advantage: Ultra Low Profile Screws
For projects where minimal head height is critical, the ULP (Ultra Low Profile) screw is the preferred solution. ULP screws are specifically engineered to attach standing seam roof clips to wood, and they are the fastener of choice for installing clip-less nail hem metal roof panels.
Key advantages of ULP screws include:
- Ultra-low pancake head with taper — only .040″ head thickness, ensuring a near-flush finish
- #2 square recess drive — positive engagement, reduced cam-out, faster installation
- #10-9 Gimlet Point self-tapping design — aggressive threading for quick, secure penetration
- Ruspert 1,000-hour salt spray coating — superior corrosion resistance, suitable for use in treated and fire-treated lumber
The ULP’s low profile is especially valuable in standing seam systems where clip height and panel clearance are tightly controlled. By minimizing the fastener’s footprint above the clip, ULP screws help maintain the clean, uninterrupted lines that define quality metal roofing.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Description | #10-9 Gimlet Point self-tapping screw |
| Head Style | Ultra low pancake head with taper |
| Drive System | #2 square recess |
| Head Thickness | .040″ |
| Material | C1022 carbon steel / 410 stainless steel (copper roofing compatible) |
| Heat Treat | Case hardened to finish |
| Coating (Carbon Steel) | Long-life coating, 1,000 hrs. salt spray |
| Coating (Stainless Steel) | Passivated, 48 hrs. salt spray |
| Major Diameter | .195″ |
| Minor Diameter | .125″ |
| Stress Area | .01267 in² |
Pullout Strength: Tested Performance Across Substrates
Fastener performance isn’t just about specs on paper — it’s about real-world holding power. The #10-9 GP pancake head screw delivers consistently strong average ultimate pullout values across common roofing substrates:
表格
| Substrate | Pullout (lbs.) |
|---|---|
| 1/2″ Plywood | 383 |
| 5/8″ Plywood | 395 |
| 3/4″ Plywood | 574 |
| 7/16″ OSB | 136 |
| 19/32″ OSB | 356 |
| 23/32″ OSB | 514 |
| 2 x 4 SYP | 813 |
These figures demonstrate the screw’s versatility — from lightweight OSB sheathing to solid southern yellow pine, the pancake head screw maintains reliable holding capacity that engineers and contractors can count on.
Beyond Roofing: Special Applications

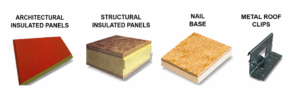

While metal roofing is the primary domain, pancake head screws are far from one-trick fasteners. Their low-profile design and self-tapping capability make them suitable for attaching a variety of materials to steel up to 1/4″ thick. This opens up applications in:
- Metal-to-metal framing and substructure connections
- Architectural panel systems
- Equipment mounting where head clearance is limited
- General industrial fastening requiring a clean, flush finish
Complementary System: 1/4″ Snap Lock Engineered Panel Clip
For standing seam installations using snap-lock type panels — where mechanical seaming is not required — the 1/4″ Snap Lock Engineered Panel Clip is the natural companion to pancake head screws.
Features and benefits:
- Manufactured from high-quality, corrosion-resistant steel meeting strict mechanical property requirements
- Tightly controlled manufacturing tolerances for a secure, functional fit every time
- Allows unlimited thermal movement — accommodating expansion and contraction without stressing the panel
Product selection:
| Item | Description | Carton Wt. (lbs.) | Carton Qty. |
|---|---|---|---|
| 1″ Snap lock clip | 18 ga. (1.2 mm) G-90 Galvanized | 26 | 200 |
| 1″ Snap lock clip | 22 ga. (0.8 mm) G-90 Galvanized | 18 | 200 |
Specifications: Height 1.01″ (25.65 mm) · Width 3.50″ (88.90 mm) · 2-hole design.
Important: Always follow the standing seam panel manufacturer’s details and instructions on proper use, location, and performance values — and ensure roof panels are properly fixed to the structure to prevent uncontrolled sliding.
Choosing the Right Fastener for Your Project
Selecting the correct pancake head screw comes down to three key considerations:
- Substrate material — Wood, plywood, OSB, or steel? Each requires the right point type and threading.
- Corrosion environment — Coastal or high-humidity applications may call for 410 stainless steel or the Ruspert-coated carbon steel option.
- Head clearance requirements — When panel overlap or trim clearance is tight, the ULP’s .040″ head thickness is invaluable.
Final Thoughts
Pancake head screws — and especially the ULP variant — represent a thoughtful engineering solution to a common challenge: how to fasten securely without compromising the clean lines and functional clearance that modern metal roofing demands. With proven pullout strength, corrosion-resistant coatings, and a profile that stays out of the way, these fasteners earn their place in any serious metal roofing system.
Whether you’re installing standing seam panels, snap-lock systems, or tackling a special application that calls for a low-profile, high-strength fastener, pancake head screws deliver the performance that keeps roofs secure — season after season.
